Custom 4 Slot Battery Swapping Cabinet Change Station For Electric 3/4 Wheeler Car

MOQ : 1

Price : 730

Model NO. : BC004-1

Overall Machine Output Power : ≤4kw

Single Output Power : ≤800W

Maximum Current of Each Charging Compart : 15A

Standby Power : ≤50W

Input Voltage Range : 176V-264V

Voltage Frequencyl : 50Hz/60Hz

Charging Energy Efficiency : ≥93%

Adapt to The Battery : Can or 485 Communication Lithium Battery

Heat Dissipation Method : Thermostatic Fan Cooling/Industrial Air Conditione

Customer Use and Payment : APP/IC Car

Network Connection Method : 4G/WiFi

Protection Level : IP54

Material and Appearance Craftsmanship : Thickened Galvanized Steel Plate Electrostatic Pow

Transport Package : Fumigation-Free Wooden Box

Specification : 1340*600*1747mm

Trademark : Hupp green energy(HP green energy)

Origin : China

HS Code : 8537109090

Production Capacity : 10000

Contact Now

Custom 4-Slot Battery Swap Cabinet for Electric 2/3/4-Wheelers

The power swap cabinet is a specialized system designed for electric low-speed vehicles (including electric tricycles, motorcycles, and low-speed four-wheelers). This system enables users to quickly exchange depleted batteries for fully charged ones, eliminating lengthy charging waits.

Product Specifications

Product Model	HP-HD06	HP-HP08	HP-HP10	HP-HP12
Number of Charging Roads	6 PCS	8 PCS	10 PCS	12 PCS
Display Screen	7/10/21-inch industrial touch screen
Equipment Size	8506701785mm	8206001666mm	8206001786mm	113406001747mm
Battery Compartment Size	250230410mm
Total Output Power	≤4800W	≤6400W	≤8000W	≤9600W
Single-Way Output Power	≤800W
Charging Power (Other)	1000W/1200W/1400W

Key Features

Quick Battery Replacement: Designed for rapid battery swaps, significantly reducing user wait times
Intelligent Management: Built-in system monitors battery status (charge level, health) and ensures safe charging with automatic sorting/distribution
Safety Mechanisms: Multiple protections against overcharge, short circuits, and other hazards during battery exchange

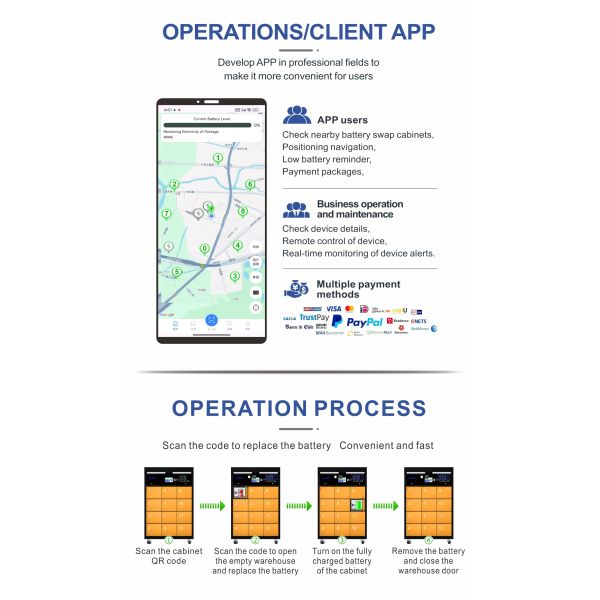

User-Friendly Operation: Touchscreen interface and mobile app support for intuitive control
Energy Efficiency: Reduces power waste during charging while extending battery lifespan
Network Connectivity: Remote monitoring and management capabilities for battery swap stations
Eco-Friendly: Zero-emission solution with lower operating costs than fuel-powered alternatives

Application Scenarios

These battery swap cabinets are ideal for urban transportation networks, particularly in high-traffic areas like transportation hubs, business districts, and residential communities where electric vehicles are prevalent.

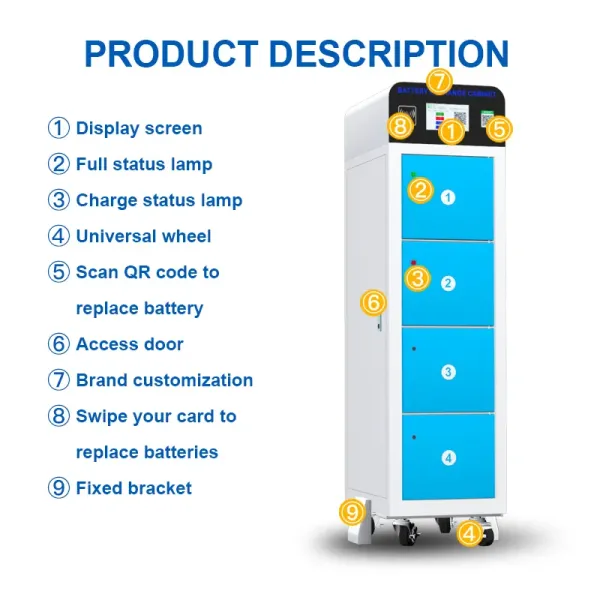

Product Images

Custom 4 Slot Battery Swapping Cabinet Change Station For Electric 3/4 Wheeler Car

For additional specifications or customization options, please contact our customer service team.
